LIQUID CO₂ STORAGE TANKS
Insulated Storage for Liquid Carbon Dioxide

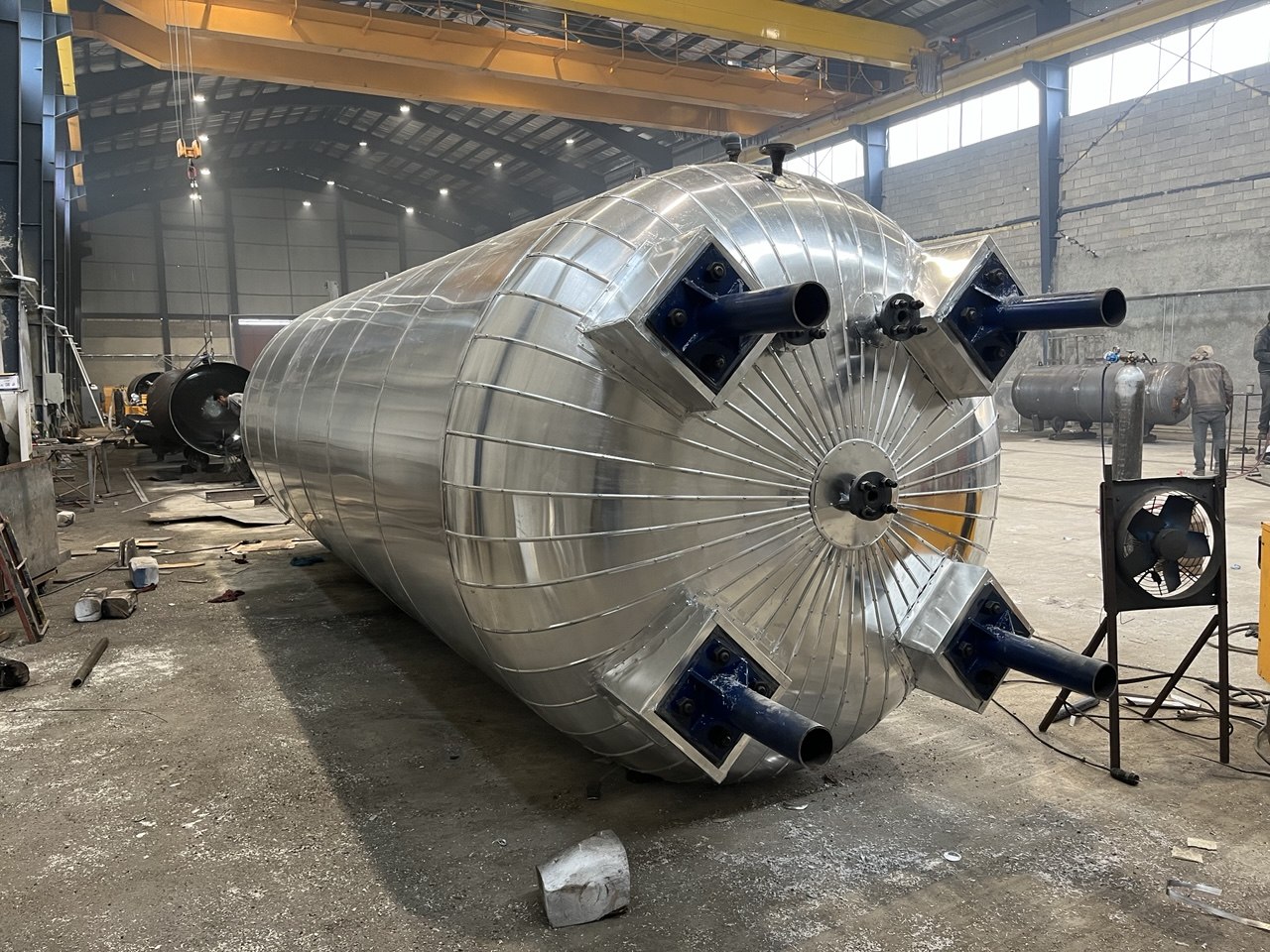

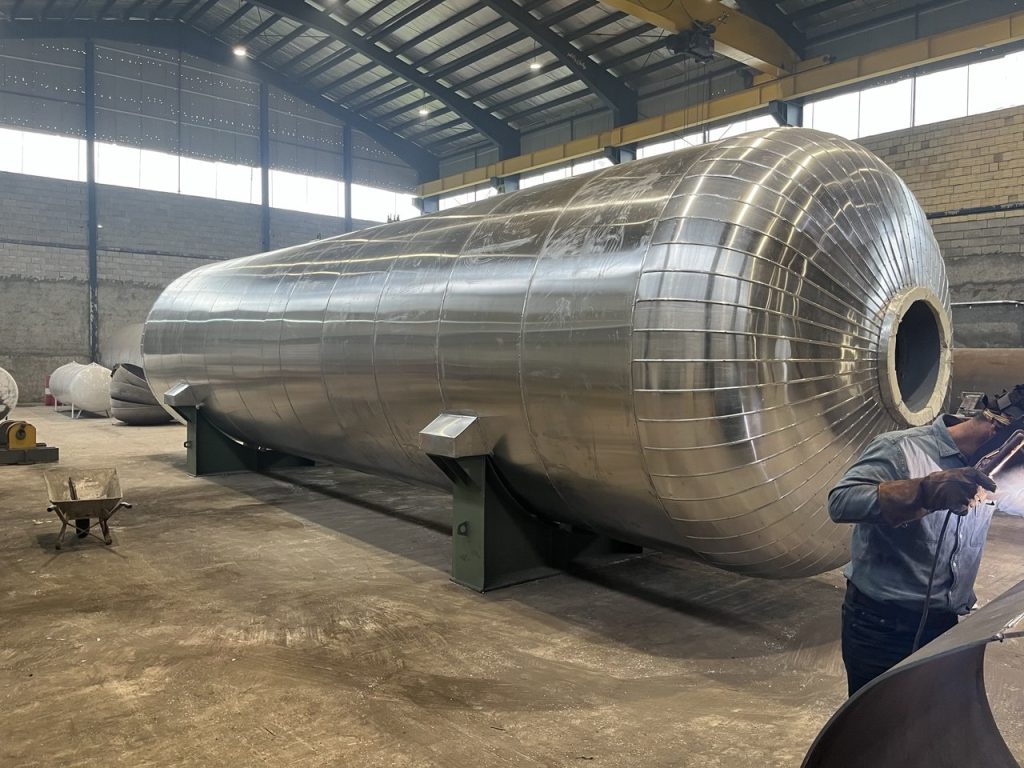

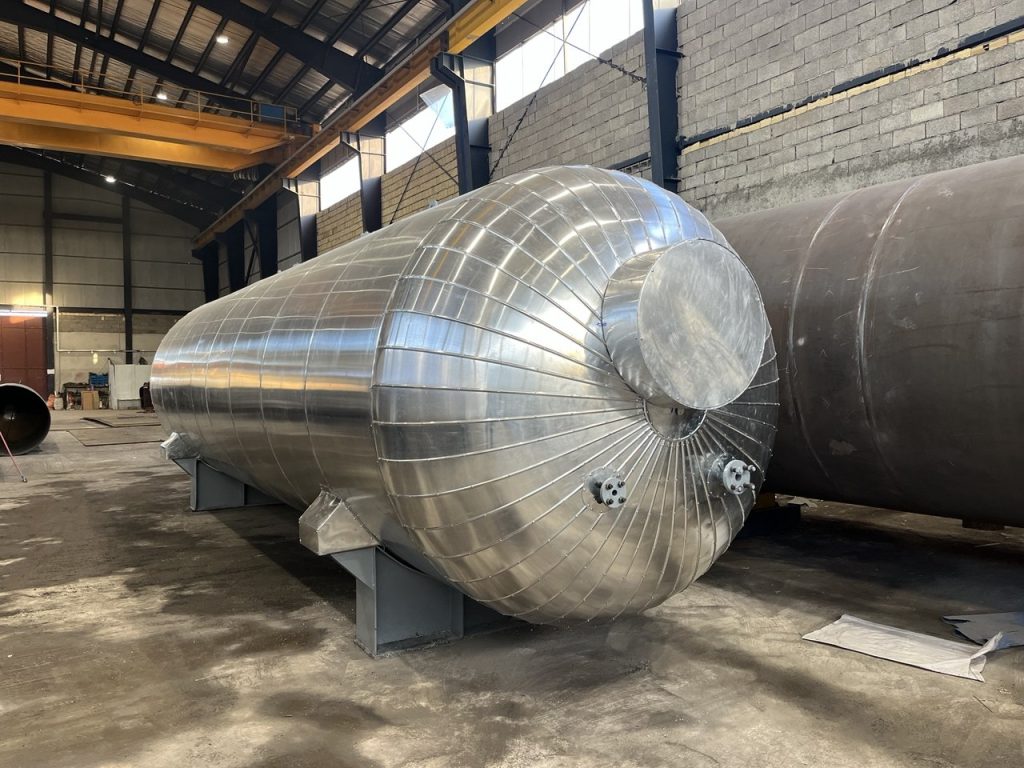

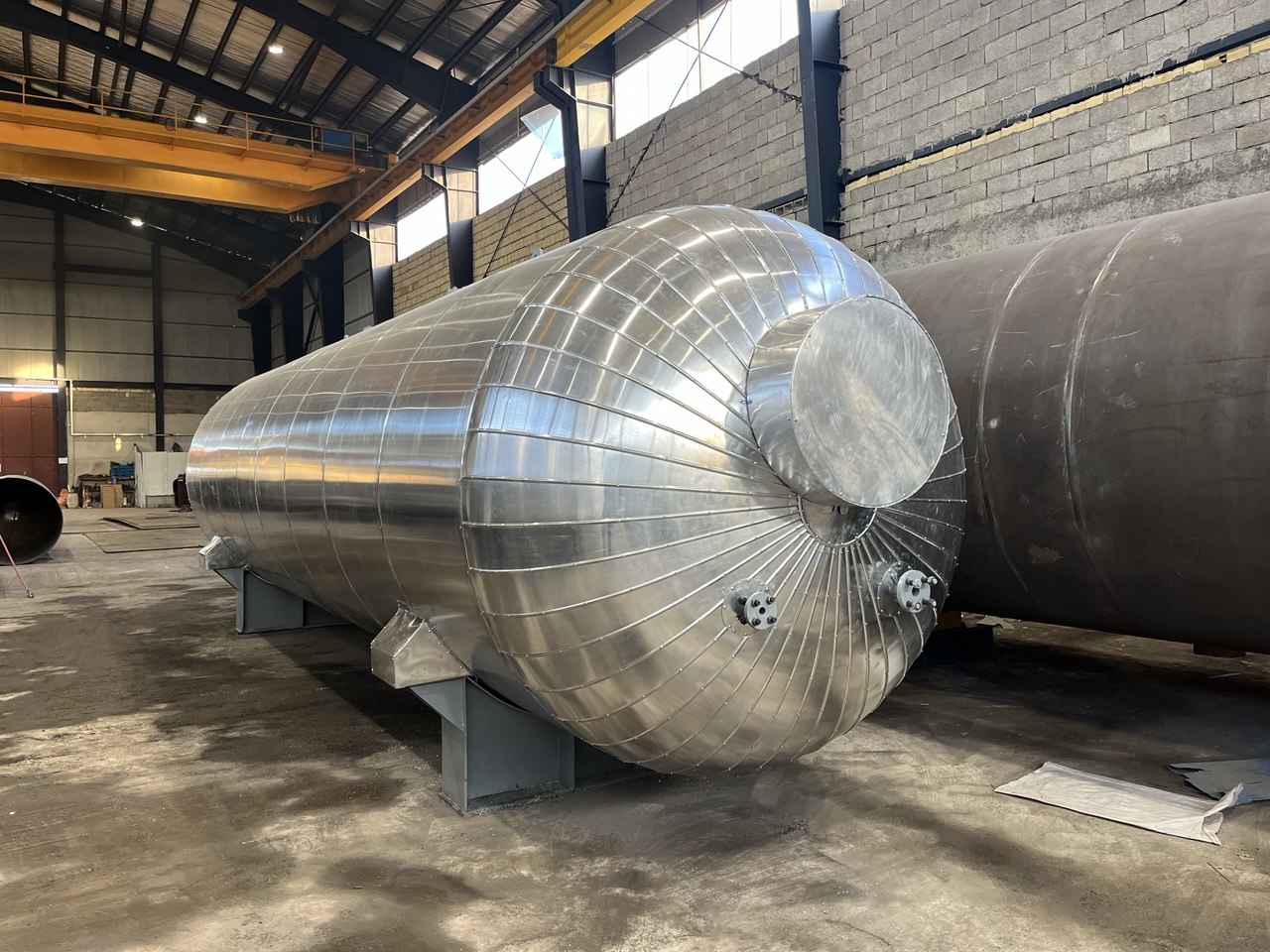

Vira Gas Tank manufactures insulated pressure vessels for the storage of liquid carbon dioxide (LCO₂).
Our CO₂ tanks are designed for industrial gas distribution, food & beverage, carbonation and other applications requiring reliable low-temperature liquid CO₂ storage.
Technical Specifications
Parameter | Typical Specification |
Medium | Liquid CO₂ |
Capacity | Customized |
Typical Capacity Range | 8–40 tons and larger |
Design Pressure | Up to 25 bar* |
Design Temperature | Typically -40°C / +50°C* |
Insulation | Polyurethane (PU) |
Insulation Thickness | Typically 150–200 mm* |
Outer Cladding | Aluminium |
Configuration | Horizontal / Vertical |
Piping | Stainless Steel where specified |
Level Measurement | Differential Pressure / Load Cell |
Signal Output | 4–20 mA where applicable |
Pressure Control | Pressure Build-Up System |
Safety | Pressure Relief Devices |
Applicable Codes | EN 14398 / ASME VIII / AD 2000, as applicable |
* Final values are determined by the design calculation, applicable code and project specification.
Main Features
- Low-temperature pressure vessel design
- High-performance PU insulation
- 150–200 mm insulation options
- Aluminium protective cladding

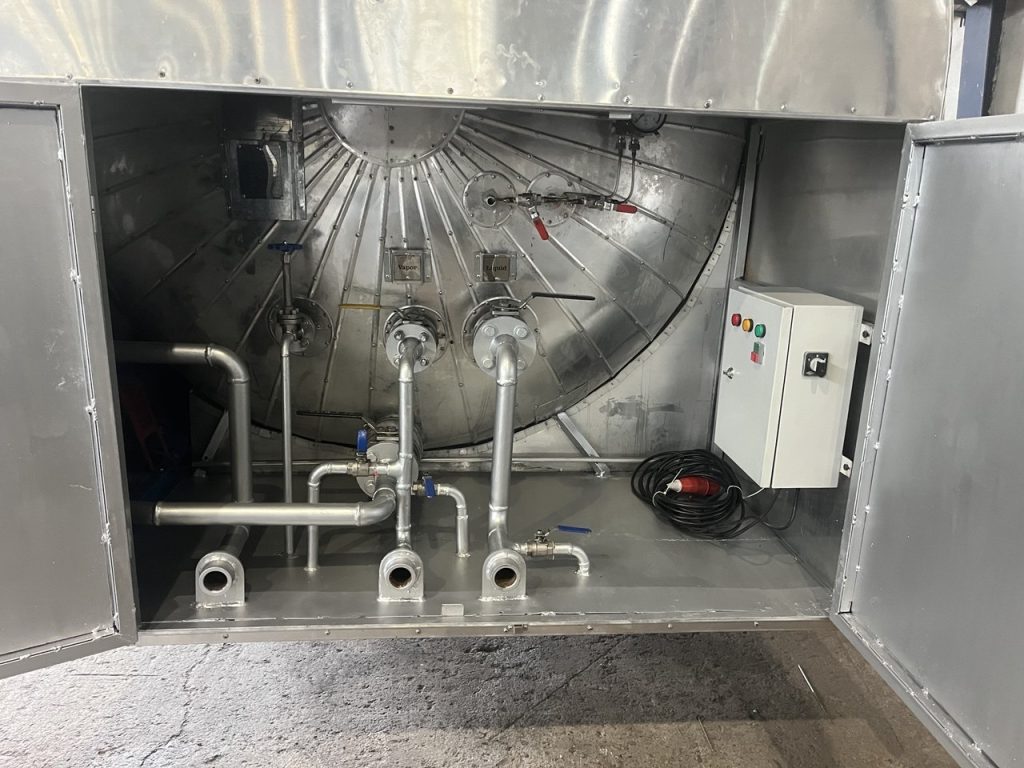

- Stainless-steel process piping
- Pressure build-up system
- Pressure control and monitoring
- Differential pressure level measurement
- 4–20 mA transmitter option
- Pressure gauges and safety devices
- Customized filling and withdrawal connections
- Complete inspection and manufacturing documentation
ASCO's PU-insulated CO₂ tanks use a 24-bar design pressure, 150–200 mm PU insulation, aluminium cladding, stainless-steel piping and differential-pressure level measurement with 4–20 mA output. Their current product range covers approximately 10–100 tonnes.
Typical Applications
- Food & Beverage
- Carbonated Beverage Production
- Industrial Gas Distribution
- CO₂ Supply Systems
- Dry Ice Production
- Water Treatment
- Chemical Industry
- Industrial Manufacturing
Available Configurations
8 Ton | 10 Ton | 20 Ton | 24,500 L | 40,000 L | Custom Capacity
